Handlebar Width Calculator & MTB Cockpit Guide
Get a starting width, then check the measurements that decide whether an MTB bar can be installed, tested, or trimmed within its model limits.
Loading calculator…
Treat the result as a test position, not a prescription
For trail riding, OneUp uses 760–780 mm as a common market example and recommends testing before removing 5 mm from each side. That range is not a universal answer for every rider, discipline, bar, or trail.
OneUp handlebar cutting instructionsMeasure the rider and the bike
Shoulder width is a useful fit check. Existing bar width tells you where the bike starts. Record both before changing anything.
Shoulder width
Stand relaxed and measure between the bony acromion points. Have another person take the measurement twice. Use the average if the readings differ slightly.
MTB bar width
Measure end to end, including the usable grip area but not removable bar-end plugs. Compare that number with the exact model's stock width and trim marks.
Natural hand position
Sit on the bike in riding posture, close your eyes, relax your shoulders, and place your hands where they fall naturally. Repeat after each small change instead of chasing one number.
Width is one part of the MTB cockpit
| Dimension | What it changes | Check before adjusting |
|---|---|---|
| Width | Leverage, arm angle, reach feel, and trail clearance | Model minimum, grip and control space |
| Rise | Grip height and rider weight distribution | Steerer spacers, stem rise, frame stack, cable length |
| Backsweep | How far the grips angle toward the rider | Wrist position and effective reach |
| Upsweep | Upward grip angle from the center section | Wrist and elbow position in riding posture |
| Bar roll | Effective rise, sweep, and hand position together | Manufacturer alignment marks and lever angle |
OneUp's V2 setup shows why these numbers are model-specific: one marked roll position produces 8 degrees of backsweep and 5 degrees of upsweep on that bar. Use alignment marks as a starting point, then follow the instructions for the bar you own. See the OneUp V2 installation guide.
Choose by terrain and bike, not a discipline label alone
The sourced numeric guidance here covers a trail example only. There is not enough primary evidence in this guide to publish separate ideal ranges for XC, enduro, and downhill.
- XC
- Test the interaction between steering response, climbing posture, breathing room, and local tree clearance. Do not copy a race setup without checking the whole cockpit.
- Trail
- Use 760–780 mm as the sourced starting market example, then test in small steps within the exact bar's limits.
- Enduro / downhill
- Stability and leverage matter, but so do rider size, stem, reach, stack, controls, and course clearance. Verify the bar model rather than assuming wider is better.
Trim only after every check passes
Cutting is permanent. A printed trim mark does not replace the model manual, minimum-width limit, or control-space check.
- 1
Identify the exact bar model and read its current installation and cutting instructions.
- 2
Record stock width, the model-specific minimum width, clamp diameter, flex zones, and control restrictions.
- 3
Confirm the proposed width leaves enough straight control area for grips, brakes, shifter, dropper remote, and approved accessories.
- 4
Test the bar at stock width first. If the manual permits cutting, mark equal small increments on both sides.
- 5
Use the blade and saw guide specified for the material. Carbon and aluminium procedures are not interchangeable.
- 6
Smooth and clean the finished edges as instructed, then reassemble to the lower applicable component torque limit.
- 7
Test on easy terrain. Change one variable at a time and stop if pain, numbness, damage, or control movement appears.
Procedures: OneUp cutting instructions and Park Tool's handlebar cutting guide.
Adjust the cockpit as a system
| If you change | Recheck | Useful tool |
|---|---|---|
| Bar width | Reach feel, shoulder angle, controls, trail clearance | Stem Length Calculator |
| Stem length or rise | Steering feel, hand position, bar height | Stem Comparison |

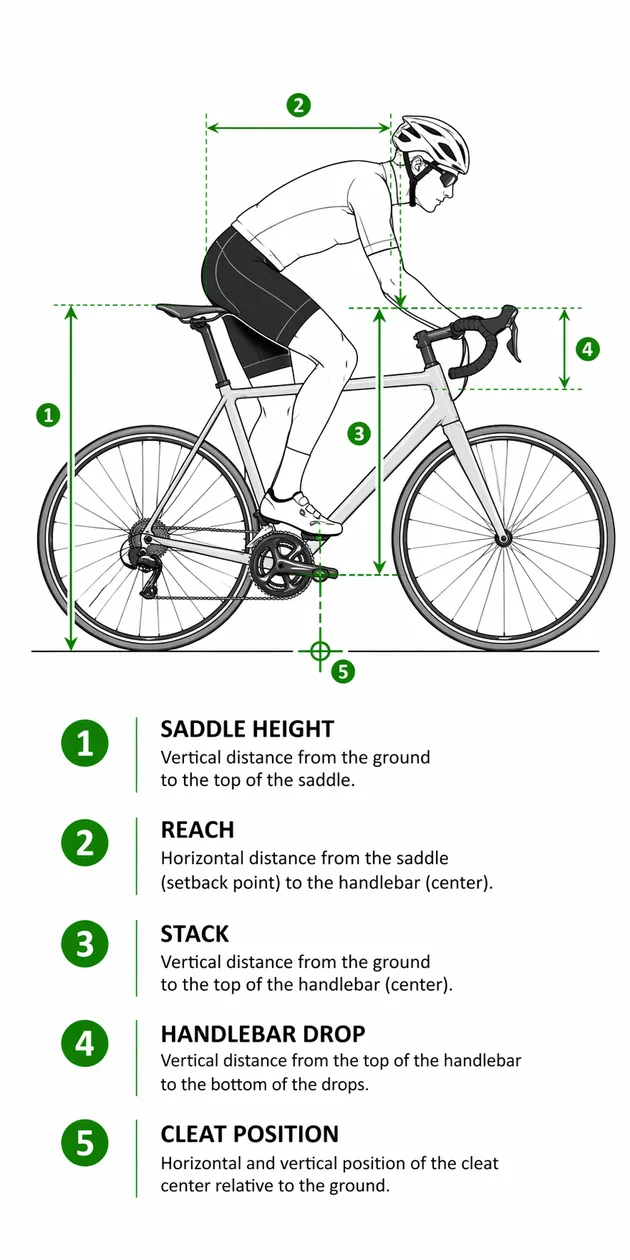

| Frame reach or stack | Available cockpit range before component changes | Reach & Stack Calculator |
BikeFit describes hand position as the combined result of bar height, depth, width, rotation, stem dimensions, and control position. Read BikeFit's hand-position guide.
Use symptoms as prompts, not diagnoses
| What you notice | Check first | Low-risk test |
|---|---|---|
| Shoulders feel spread or tense | Width, reach, bar roll, lever position | Move hands inward temporarily without cutting |
| Wrists feel bent | Backsweep, upsweep, roll, lever angle | Adjust one angle within the model marks |
| Front wheel feels difficult to load | Bar height, stem, frame reach, riding position | Review setup with a qualified fitter before buying parts |
Persistent pain, numbness, weakness, or loss of control needs more than an online calculator. Stop the adjustment process and speak with a qualified bike fitter or clinician.
Final compatibility check
- The stem and bar clamp diameters match.
- The stem clamp width stays within the bar manufacturer limit.
- Controls sit fully inside the approved control area and outside any flex zone.
- Grips, bar ends, carriers, aero extensions, and other accessories are allowed by the exact bar.
- Brake hoses and control cables move freely through the full steering range.
- Every fastener uses the lower applicable torque limit from the connected components.
- There are no cracks, crush marks, deep scratches, loose controls, or unexplained noises.
OneUp's V2 instructions, for example, specify a 60 mm maximum stem clamp width, model-specific torque limits, and prohibited control positions. Those values apply to that product, not every handlebar. Check the product-specific example.
