Canyon Bike Size Chart: Find Your Frame Size by Height

Aero race bike with aggressive geometry. Integrated cockpit requires careful size selection-use Canyon's PPS tool for optimal fit.

Endurance road bike with a taller stack and shorter reach than the Aeroad, plus Canyon's VCLS vibration-damping seatpost. The relaxed geometry accommodates a wider range of flexibility-riders between sizes should size up for all-day comfort or size down if they prefer a sportier, more compact cockpit.

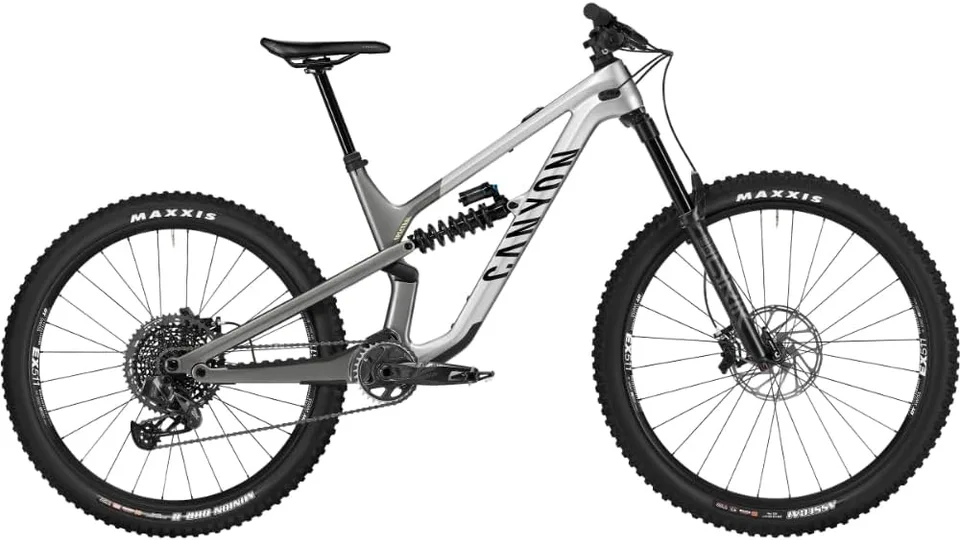

Trail/enduro bike with 150mm travel. Modern long geometry-many riders size down from road sizing; prioritize reach over height.

Gravel bike with unique double-decker handlebar. CP20 cockpit affects fit-consider stack height when sizing.

Full-suspension e-MTB with Bosch Performance CX motor and 750Wh battery. 140mm travel trail geometry pairs with Canyon's Triple Phase suspension-use Canyon's PPS fit tool and size as you would for the acoustic Neuron.

E-gravel bike with Bosch SX motor and 400Wh battery, plus optional range extender. Unique double-decker handlebar and gravel-optimized geometry-riders should match their Grail CF size for consistent positioning on long mixed-terrain rides.

Urban commuter e-bike with Bosch Performance Line motor and 545Wh integrated battery. The motor adds roughly 3.5 kg of low-centered weight which stabilizes handling at speed. Available in diamond and step-through frames-step-through riders should match standover height to inseam, while diamond-frame riders should also consider reach to the flat handlebar for a relaxed commuting posture.

5th-gen all-rounder race frame: lighter and slightly more compliant than the Aeroad, with semi-aero tube shapes that compromise less on climbing. Size M is 560/393, which is 35 mm taller in stack than the Aeroad CFR at the same size - riders moving from an Aeroad to an Ultimate typically drop spacers under the stem to keep the same bar height. Available across CF SL, CF SLX and CFR layups; geometry is identical between them.

Pure UCI cyclocross race frame: 33c tire clearance, high bottom bracket for pedal clearance through corners, and the distinctive kinked top tube for shouldering during run-ups. Size M is 572/393 - 12 mm taller and identical reach to the road-going Ultimate CF SL. CX-specific; not the right frame for gravel bikepacking despite the drop bars (look at the Grail or Grizl instead).

Enduro full-suspension with 160 mm rear travel, 170 mm fork, and the Shapeshifter geometry-adjust system that drops the seat angle by 1.5° and lowers the BB at the flick of a lever. Size M reach is a long 475 mm with 634 mm stack - aggressive even by modern enduro standards. Many riders in the 172-180 cm range will be more comfortable sizing down to S (455 mm reach) for technical, switchback-heavy terrain.

Down-country / aggressive XC platform with 120 mm front and 110 mm rear travel - splits the difference between the pure-XC Lux World Cup and the trail-leaning Neuron. Size M stack/reach is 600/460. Compared to the Cannondale Scalpel (M 602/430) the Lux Trail runs 30 mm longer in reach, which suits taller riders or anyone wanting more stability on rough descents.

Race-spec downhill bike with 200 mm rear travel, high-pivot idler, and a 63° head angle. Available in full 29" or Mullet (29"/27.5") spec - both share the M reach of 460 mm and stack of 623 mm. Park and race bike only; the steep seat tube angle and DH-only suspension make it unsuitable for trail riding. Most park riders pick the size based on bike park preference - shorter reach (M) for playful, longer (L) for raw race speed.

Fitness flat-bar based on Endurace road geometry but with a wider 28c tire spec and integrated lights/fenders/rack mounts. Size M is 563/420 - the reach matches an Endurace M (375 mm + 45 mm of stem and bar reach for a comparable cockpit). Best for commuters and fitness riders who want road-bike efficiency without drop bars.

Trekking hybrid built around 700×50c tires, a suspension fork, and a wide-range 1x drivetrain. Size M stack/reach is 617/404 - more upright than the Roadlite but tipped slightly forward for efficient pedalling over distance. The standard diamond frame and the mid-step variant share most of the geometry; mid-step lowers the standover by about 40 mm for easier mount-and-dismount.

Aggressive alloy hardtail with 140 mm fork and trail-bike geometry - longer reach and slacker head angle than a typical XC hardtail. Size M is 626/455, which is identical reach to the Lux Trail full-suspension at the same number. Riders shopping the Stoic against the Cannondale Trail SE 4 (M 626/440) get 15 mm more reach for similar money - more capable on steep descents but a stretched-out cockpit on long climbs.

Light-assist e-road bike with Fazua Ride 60 motor in the bottom bracket and a 430 Wh battery in the down tube - the integration is subtle enough that the bike looks like a regular Endurace AL. Published M geometry (590/378) is close enough to the acoustic Endurace AL that riders sizing from one to the other can stick with the same frame size. Battery removal is tool-less, useful for riders who park outdoors.
